APIELE 10Pcs Rocker Switch ON Off KCD1 Mini Round Toggle Switch SPST 2Pin Snap-in Design Car Boat Automotive with Wires Pre-Wired AC 6A/250V 10A/125V 12VDC

APIELE 10Pcs Rocker Switch ON Off KCD1 Mini Round Toggle Switch SPST 2Pin Snap-in Design Car Boat Automotive with Wires Pre-Wired AC 6A/250V 10A/125V 12VDC

Q: The ad says it's ok with 12v but only lists amps at ac. what is the amp rating at dc? i need to depend on these up to 7a dc

It can not work at 7a dc when 12v. It is about 2a in 12vdc

Q: Can I use my own 14g wire with these? How?

Of course, you can. Just leave short pigtails on the switch to solder to. Use shrink tubing to finish off your work. If you're not familiar shrink tubing, it is used to insolate soldered wires form touching each other or from anyone from being shocked. Home Depot or Lowe's carries this product in the electrical department. Cut the tubing to the desired length, cover the soldered area then apply heat. The tubing will shrink to fit. Wire nuts can also be used as an alternate method. Good luck and stay safe!!

Q: Could these be installed in a wall sconce (uses standard light bulb) that is meant to be hardwired?

The wiring is 16 gage, meaning, the use must be only for low wattage light bulbs. This switch is perfect for a lamp where the switch is set within. You will have to check the building codes in your area. For safety concerns, most codes may not allow anything but a UL approved light switches. The reason is the chance of fire within the wall. Again... the 16 gage wiring will heat up if overtaxed. I hope this has helped you. Stay safe and healthy.

4.7/5

产品编号: 272699532

安全交易

细节

Operation Mode
ON-OFF
Operating Voltage
250 Volts
Contact Type
Normally Open
Connector Type
Plug In
Brand
APIELE
Terminal
Pin

⚡6A/250V Rating

🔄15,000+ Cycles

🔌2 Pin Design

经常一起购买

APIELE 10Pcs Rocker Switch ON Off KCD1 Mini Round Toggle Switch SPST 2Pin Snap-in Design Car Boat Automotive with Wires Pre-Wired AC 6A/250V 10A/125V 12VDC

VWEICYY 9V Battery Connector,10 PCS T-Type 9 Volt Buckle Connector Hard Plastic Shell Used in Student Experiment,or Other Equipment with Battery(T-Type, 10PCS)

lkelyonewy 12 Volt 5Mm Pre Wired Led Light Emitting Diodes,Micro Led Lights Diodes for Model Assortment Kit,12V Mini Single Led Bulbs(Red*10,Green*10,Orange*10,Blue*10,White*10)

描述

🔌 Switch Up Your Game!

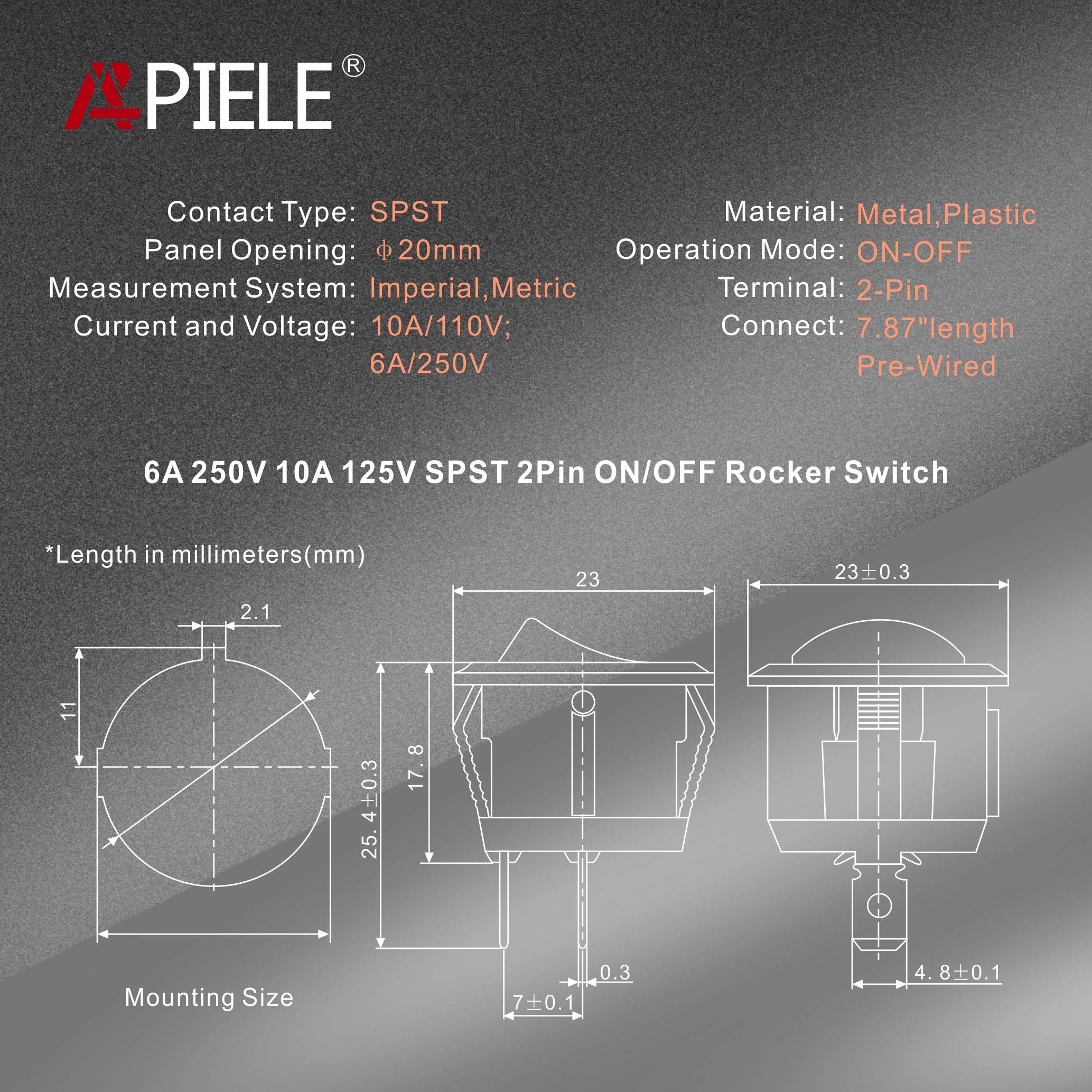

📏 COMPACT SIZE - Mounting diameter of just 20mm (0.8 inch) fits anywhere.
🔗 DURABLE CONSTRUCTION - Crafted from high-quality Nylon PA 66 for longevity.
🔋 VERSATILE POWER RATINGS - Handles up to 10A at 125V and 6A at 250V.

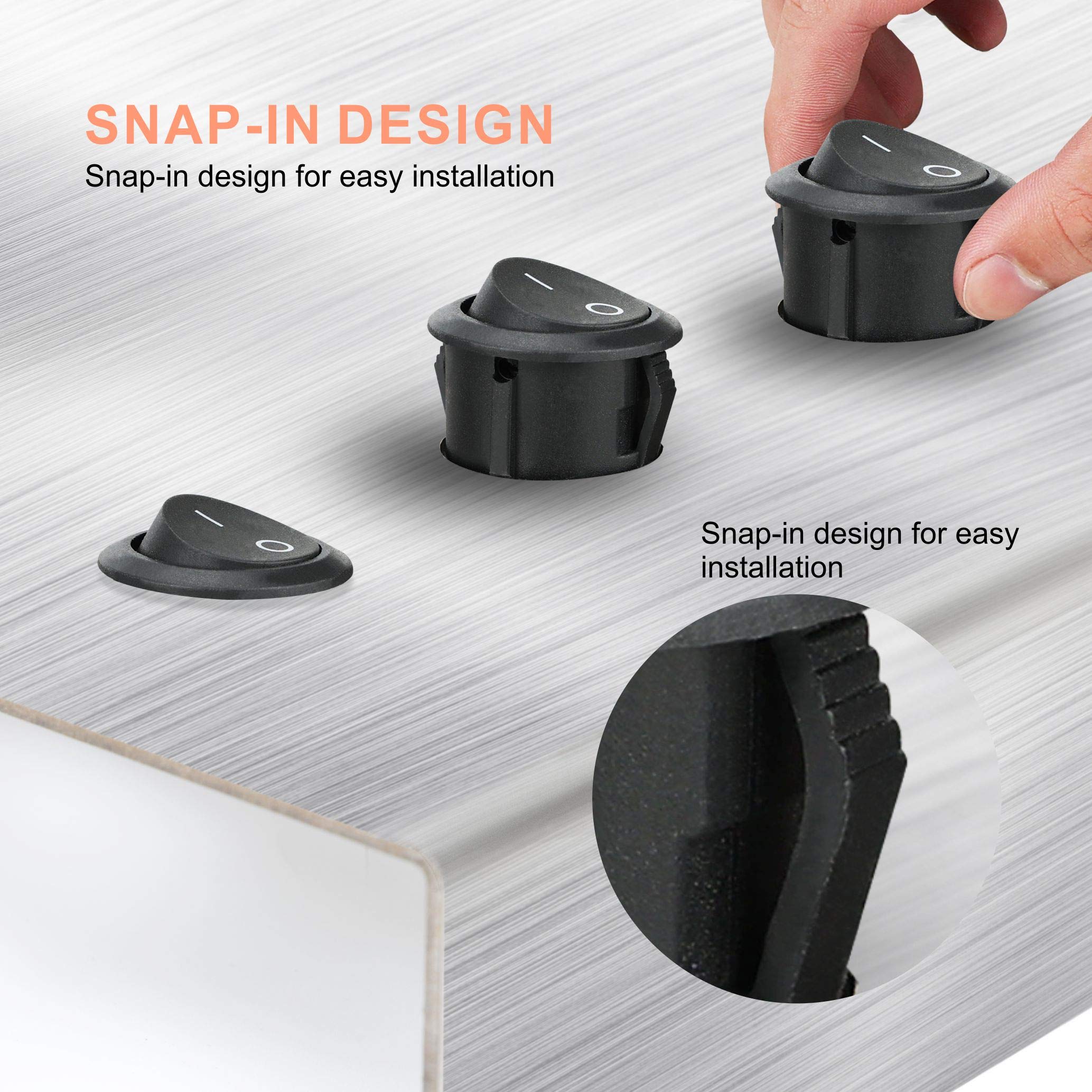

🔧 EFFORTLESS INSTALLATION - Snap-in design for quick and easy setup.

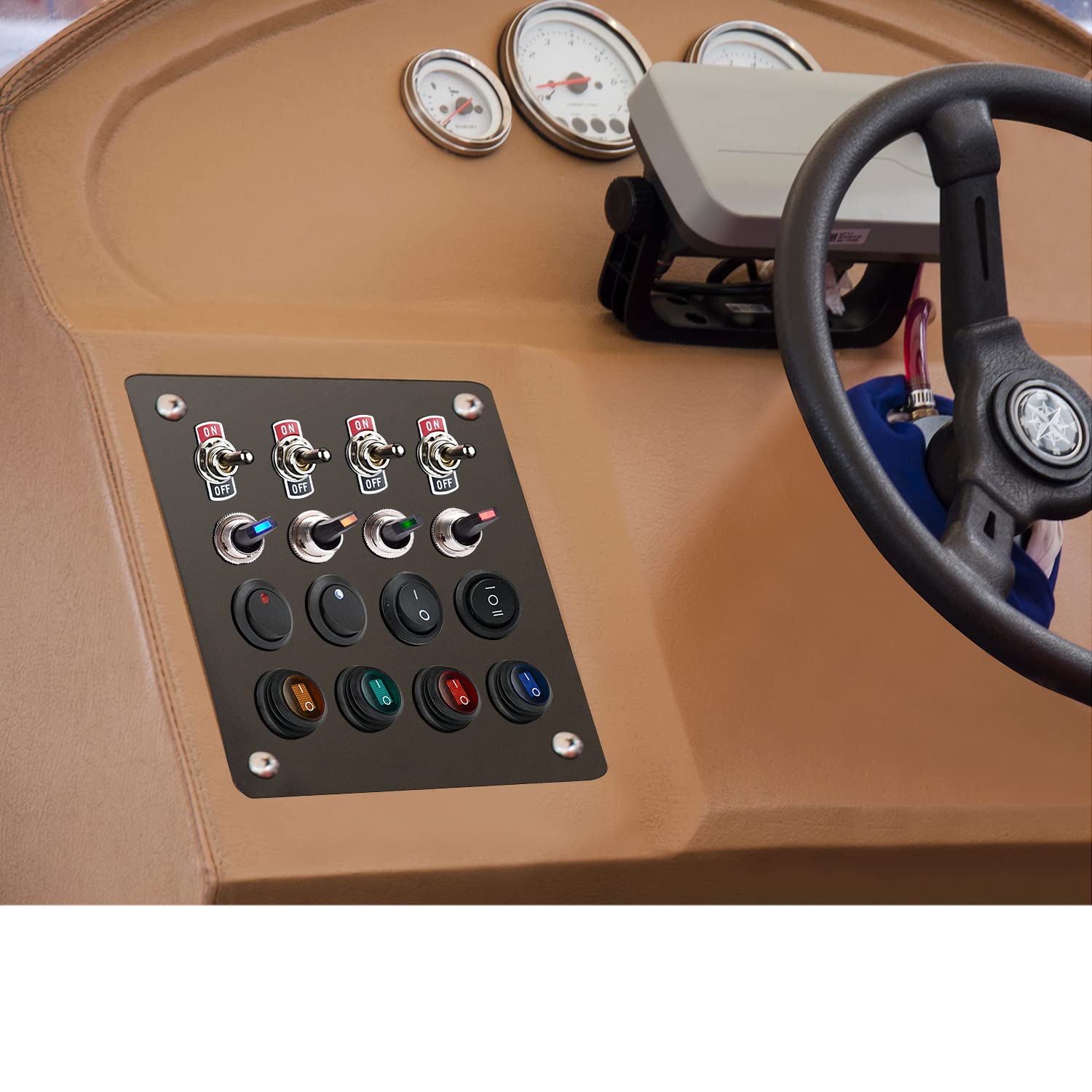

🌊 PERFECT FOR ALL ENVIRONMENTS - Ideal for automotive, marine, and home applications.

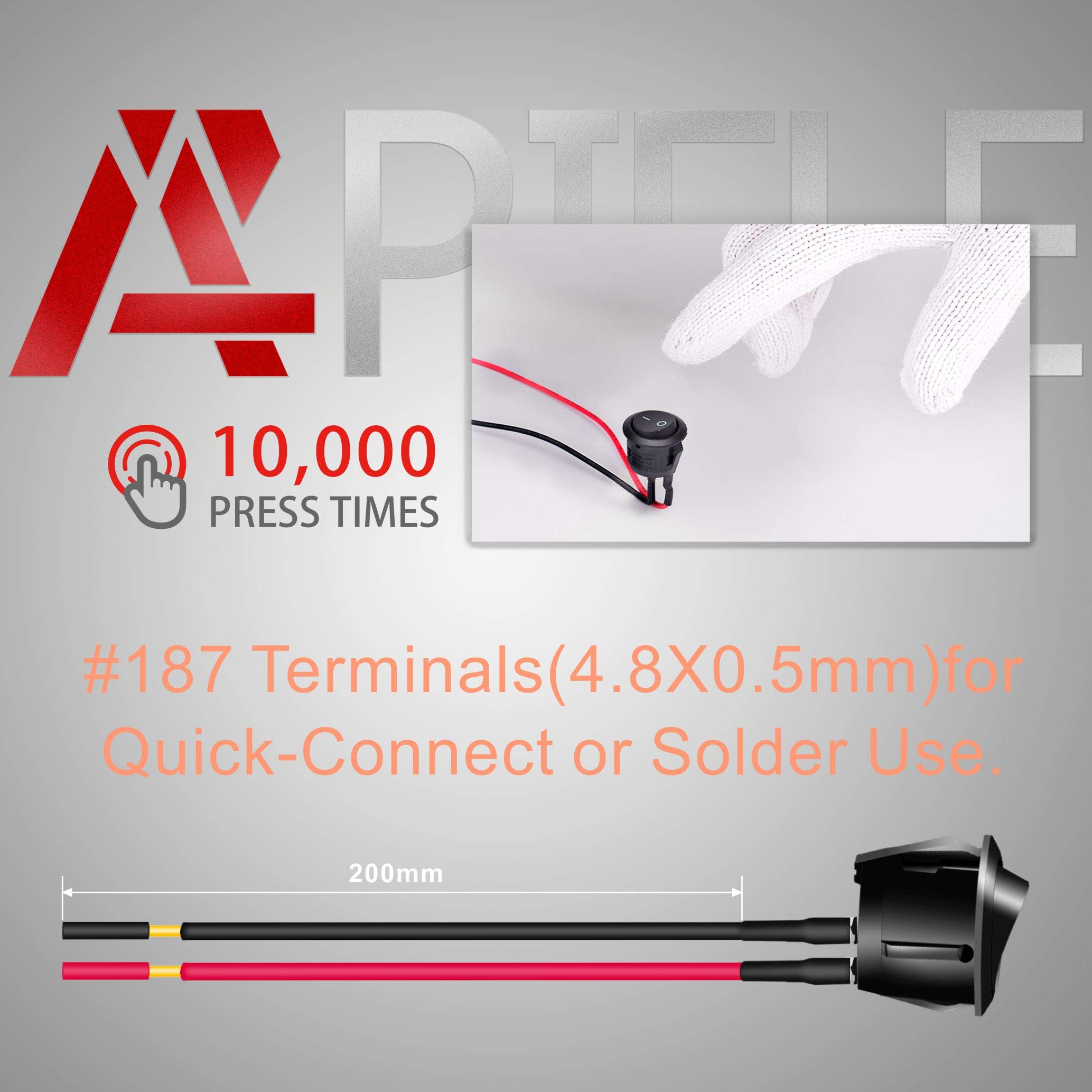

The APIELE 10Pcs Rocker Switch set features a compact, snap-in design with a robust electrical rating, making it perfect for automotive and marine applications. With a durable Nylon PA 66 construction and a lifespan of over 15,000 cycles, these switches are built to last. Each switch comes pre-wired with 200mm wires for hassle-free installation.
