🛠️ Lock in flawless fuel flow with CentIoT’s powerhouse valve!

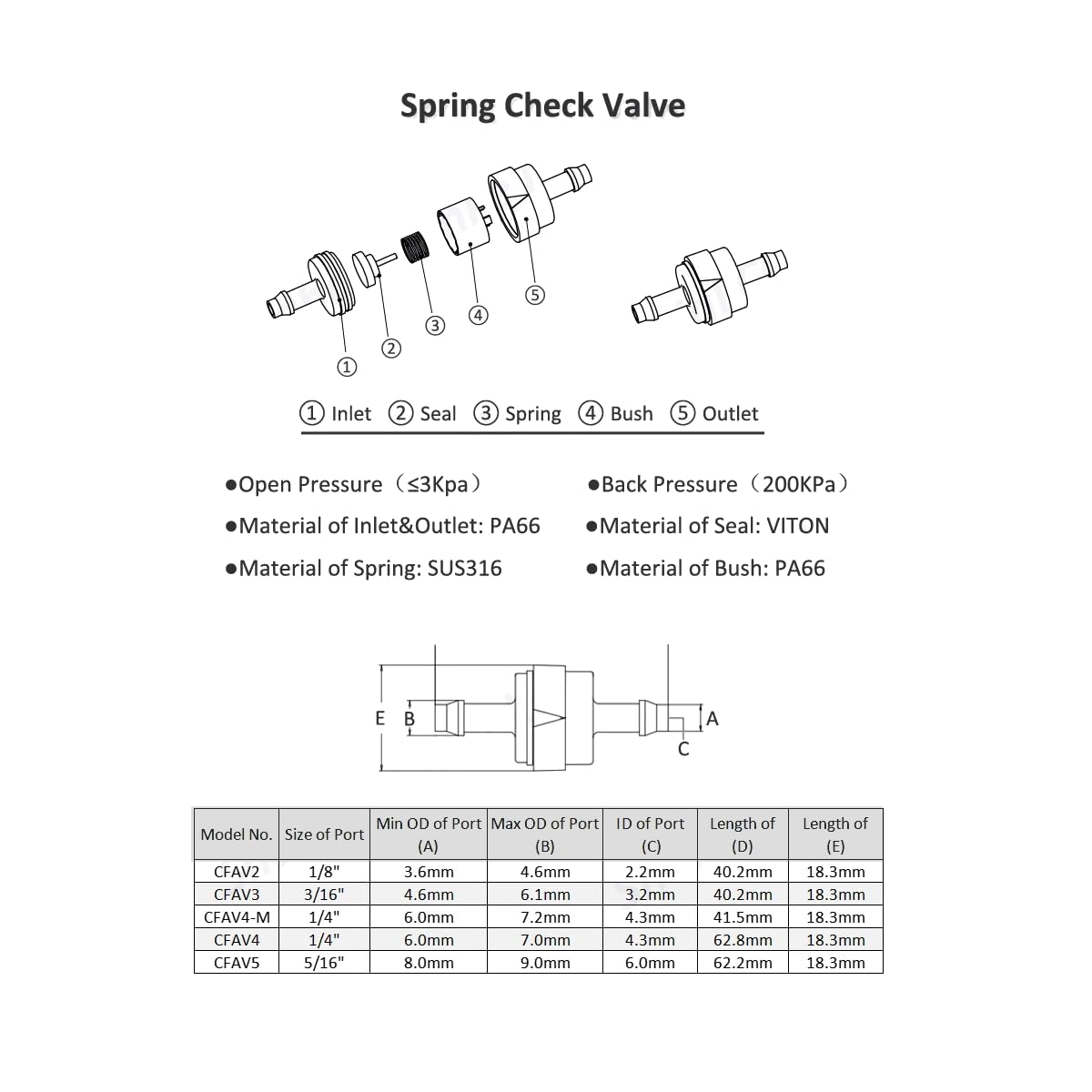

The CentIoT One-Way Non-Return Inline Check Valve combines a spring and umbrella design to deliver efficient, reliable fuel system protection. Engineered with a PA66 nylon shell, Viton rubber O-ring, and stainless steel spring, it withstands pressures up to 200 kPa and temperatures from -30°C to 130°C. Ideal for diverse vehicles including cars, helicopters, and ships, this compact valve ensures smooth, non-return fuel flow with minimal opening pressure under 3 kPa.
| Material | Nylon, Viton Rubber, Stainless Steel |
| Brand | CentIoT |
| Item dimensions L x W x H | 40 x 18 x 18 Millimeters |
| Exterior Finish | Stainless Steel |
| Inlet Connection Type | Flange |
| Outlet Connection Type | Flange |
| Maximum Operating Pressure | 2E+2 Kilopascal |
| Valve Type | Check Valve |
| Manufacturer | CentIoT, CentIoT, Customer Care: +91 8095838689 |
| Manufacturer | CentIoT |
| Country of Origin | China |
| Item model number | CFAV2-PA66 |
| Product Dimensions | 4.02 x 1.83 x 1.83 cm; 15 g |
| ASIN | B0D5YPDFTQ |
