🔧 Elevate Your Engineering Game with Precision!

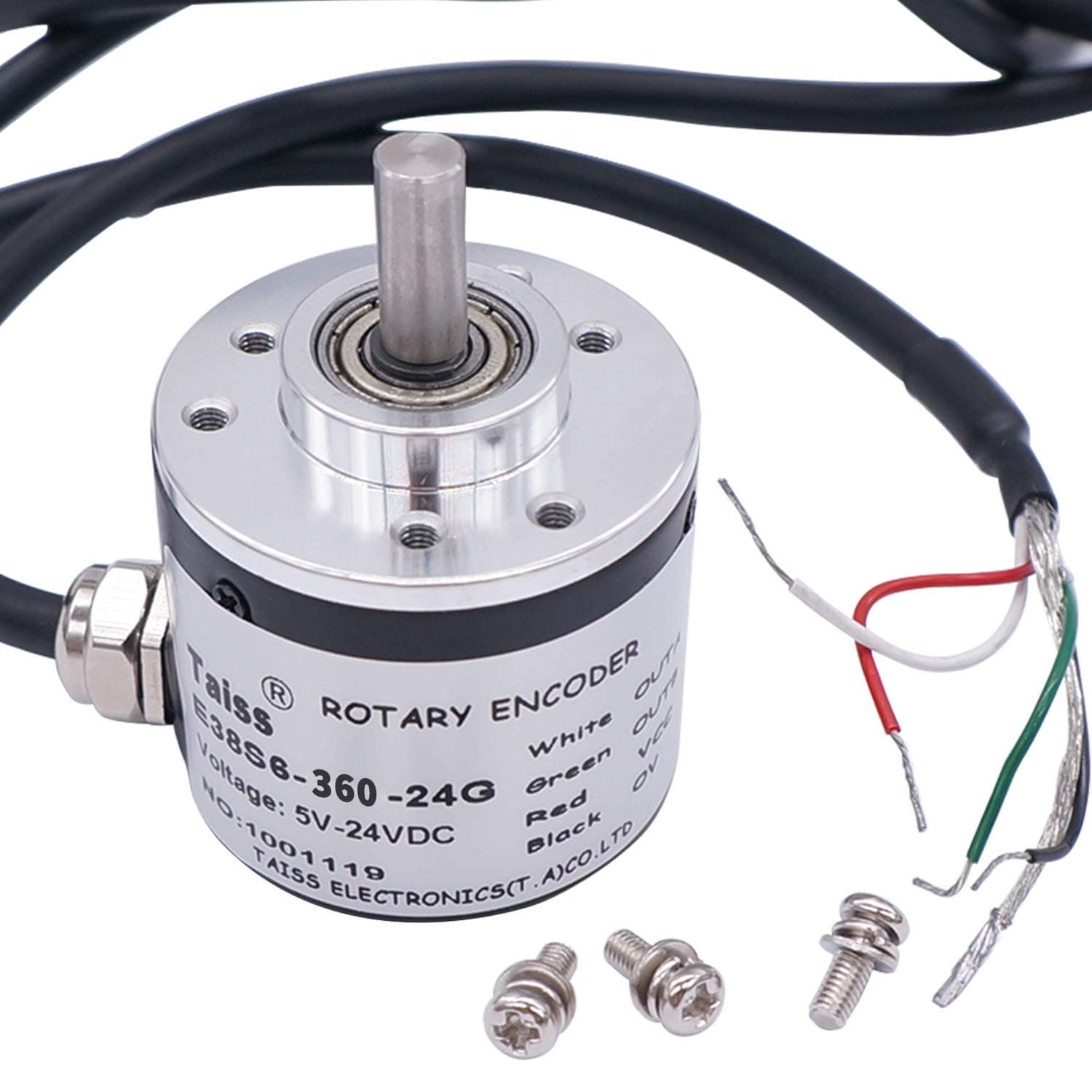

The Taiss/AB 2 Phase Incremental Rotary Encoder is a high-performance device designed for precision applications. With a wide voltage power supply range of DC 5-24V and a maximum mechanical speed of 6300 RPM, this encoder delivers reliable and accurate performance. Its compact size and robust construction make it an ideal choice for various engineering projects, backed by a 1-year quality assurance guarantee.
A**N
Surprisingly good for the price
If you are having problems using this at 5V, it's because there is a generic LM7805 as a regulator for the internal power supply. The regulator will be in drop out unless you give it around 7V. This should be rated for 7V-24V. They are not suitable for 5V operation. The outputs are also open collector so you will need pullups to your desired logic level to get signals out of these. Attached are some pictures of the nice internal construction and the quadrature output signal.
Z**5
Need pullup resistor
arduino 5v DC works for me, just need two pull up resistor of 10k in my case.
J**N
reliable with rewiring
As others have said, this needs more than 5V for stability and has open collector outputs. If you rewire power to the output of the regulator instead of the input, and move the outputs to these handy through holes on one side, you'll get 0 to about 2.6 volts on the outputs, which works nicely with my microcontroller without pullups.
A**R
Works perfectly with arduino
The encoder worked perfectly with an arduino leonardo. I fed it 5v from the arduino and the output signal was nice and clean. This encoder is NPN, so make sure you declare the pins as INPUT_PULLUP in arduino or else they'll just read LOW all the time. It came with 3 M3 screws, the same ones shown in the picture. The item description didn't mention this so I thought I'd include it here. Great product.
P**
accuracy
Perfect
