📡 Elevate your SDR game with the ultimate compact HF balun!

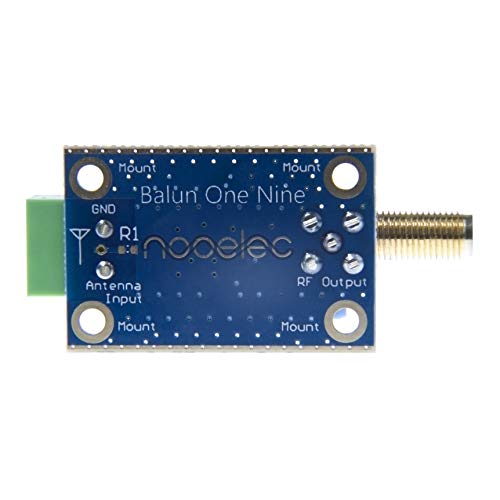

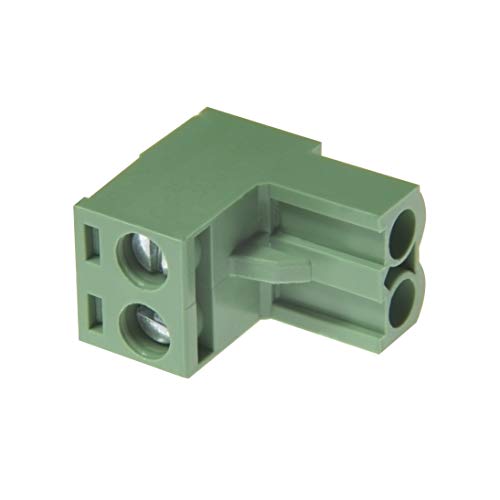

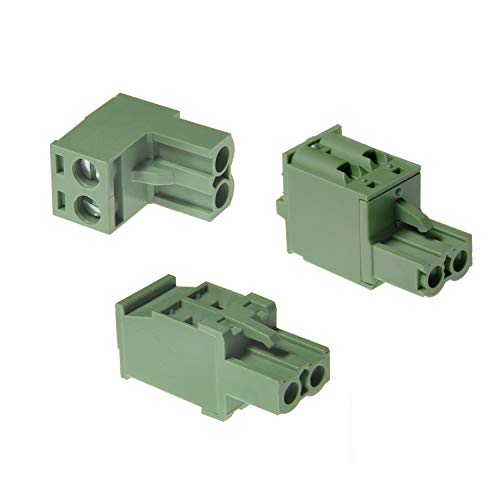

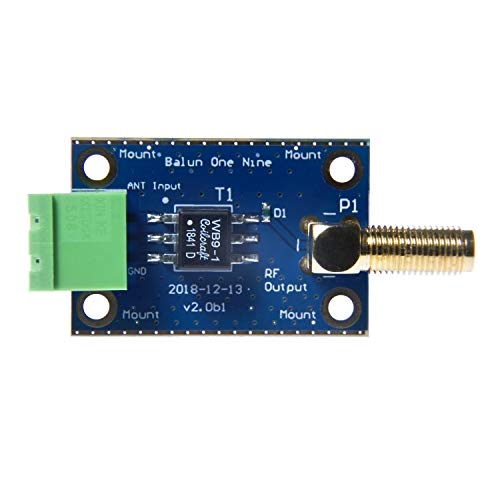

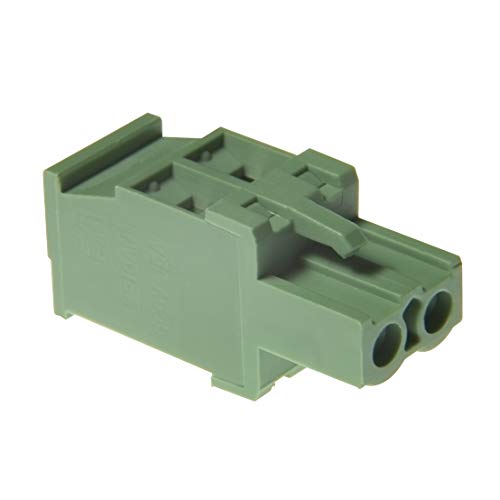

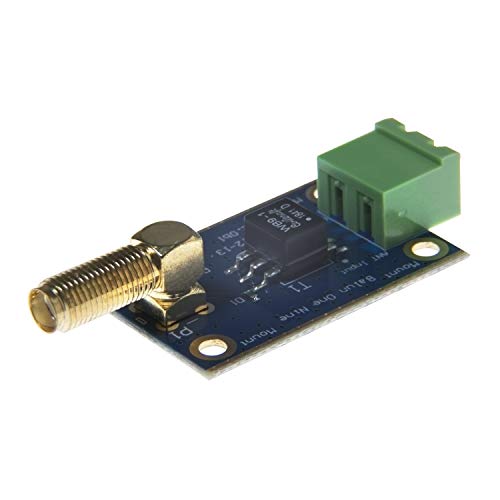

The Balun One Nine v2 Barebones is a compact, low-cost 9:1 HF antenna balun and unun designed for long wire and dipole antennas. It offers improved performance over its predecessor with lower insertion loss and expanded low-frequency capabilities. Featuring three terminal block adapters and excellent ESD protection, it’s ideal for Software Defined Radio setups like RTL-SDR, Ham It Up, and SDRPlay. Made in North America and backed by a 1-year warranty, it’s a reliable choice for serious shortwave enthusiasts.
| ASIN | B07XJRTF94 |
| Batteries Included | No |
| Batteries Required | No |
| Brand | NooElec |
| Customer Reviews | 4.4 4.4 out of 5 stars (159) |
| Date First Available | 9 January 2020 |
| Has Auto Focus | No |
| Item Dimensions LxWxH | 50 x 20 x 10 Millimeters |
| Item Weight | 7 g |
| Item model number | Balun One Nine v2 |
| Manufacturer | Nooelec Inc. |
| Model | Balun One Nine v2 |
| Product Dimensions | 5 x 2 x 1 cm; 7 g |
| Programmable Buttons | No |
| Voltage | 5 Volts |
E**.
Balun Unum para experimentar en SDR con antenas de hilo, pero poco más. Realmente para temas de HF, MF y LF hay soluciones en SDR mejores como las antenas Youloop, activas y pasivas. Eso si, funcionar funciona, pero necesitarás mucho espacio libre para poder tender los hilos.
M**S
Is degelijk en handig door de verschillende aansluitstukjes!
T**D
Using with SDRplay RSP1, that was given to me by a friend. I was skeptical at first of the One Nine and was pondering a quick return to vendor due to no case. I rigged an old RX bottle to house the OneNine that works. Upon set up and use for 10 days and nights on all Bands in all conditions I was intrigued . I had a Ham friend stop by with an Antenna Analyzer and we hooked it all up to my 50 foot end fed long wire antenna that's about 30 feet off the ground and It resonated extremely well on all Bands, 10m-40m and shortwave as well. We tried it without the ground as some thought it's not needed for receive only, Trust me the Ground made a Huge improvement in reception and lowered the noise level. All in All, very satisfied with this product for my particular setup and region.
J**N
Added this balun to my home made inverted V dipole and the results are amazing. Much less noise in the lower bands and can pull out those weaker signals a lot better now.
J**H
correspond a mes attentes
