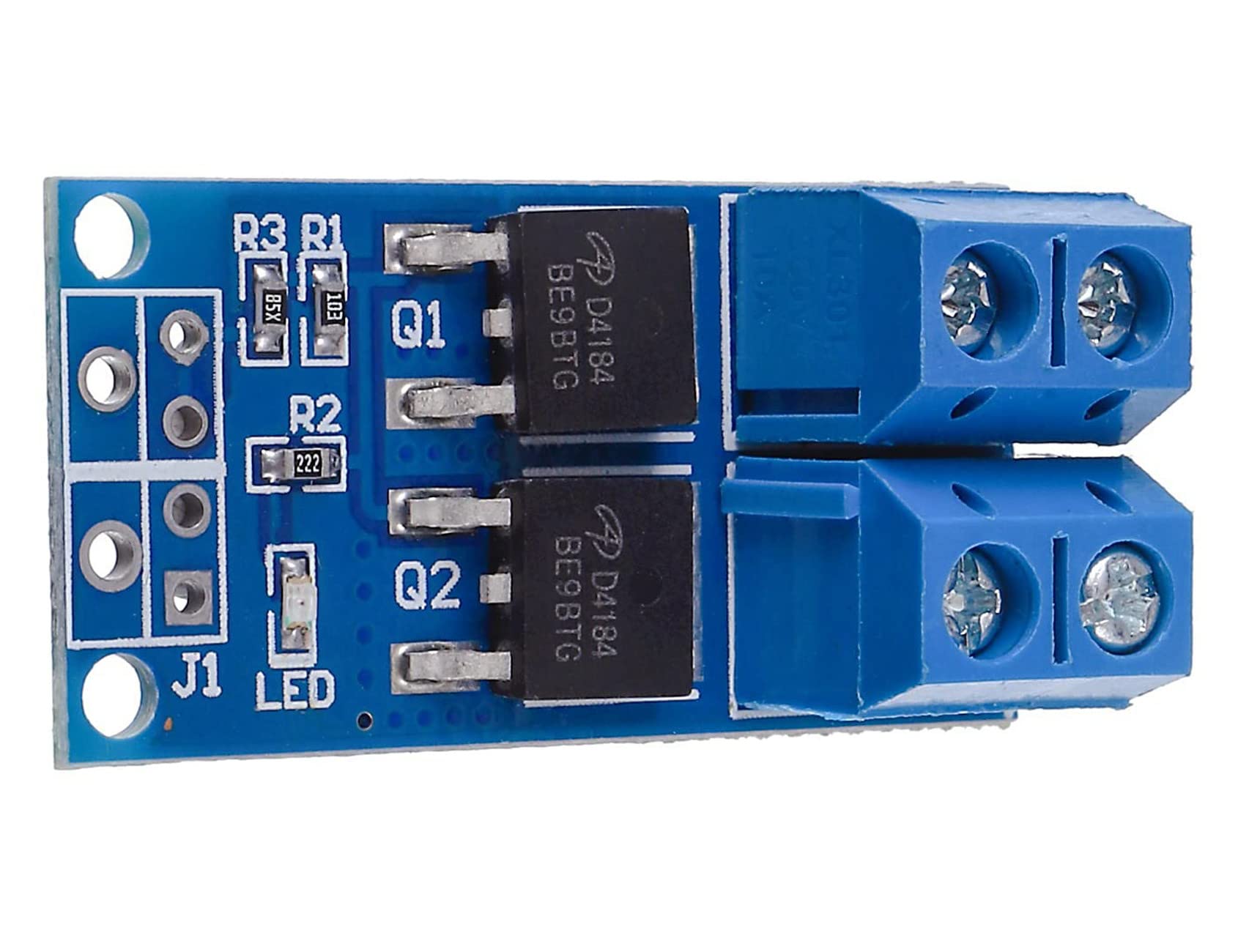

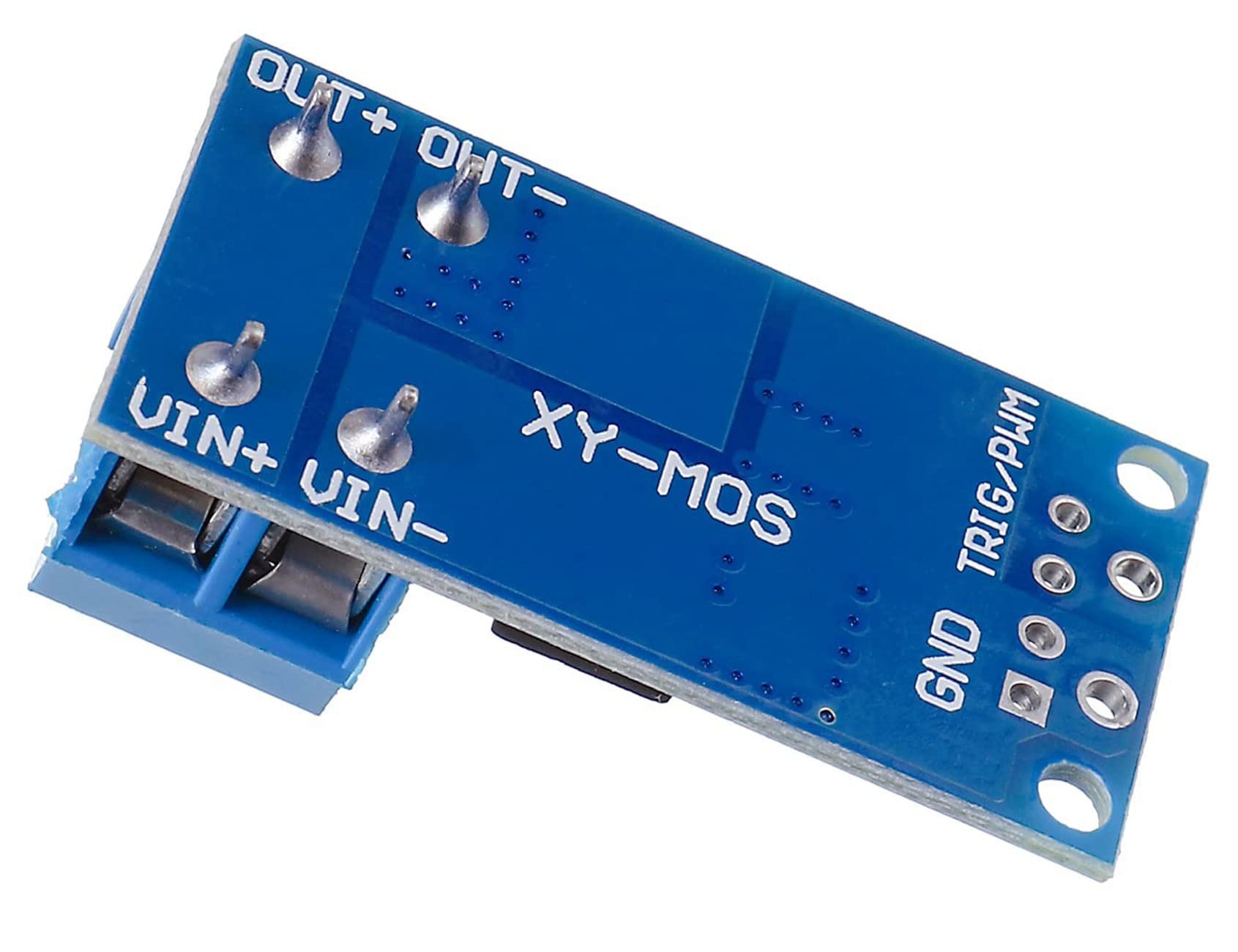

20x Dual High-Power MOS FET Trigger Switch Drive Module PWM Regulator Adjustment Electronic Switch Control Board DC 5V-36V 400W

Description

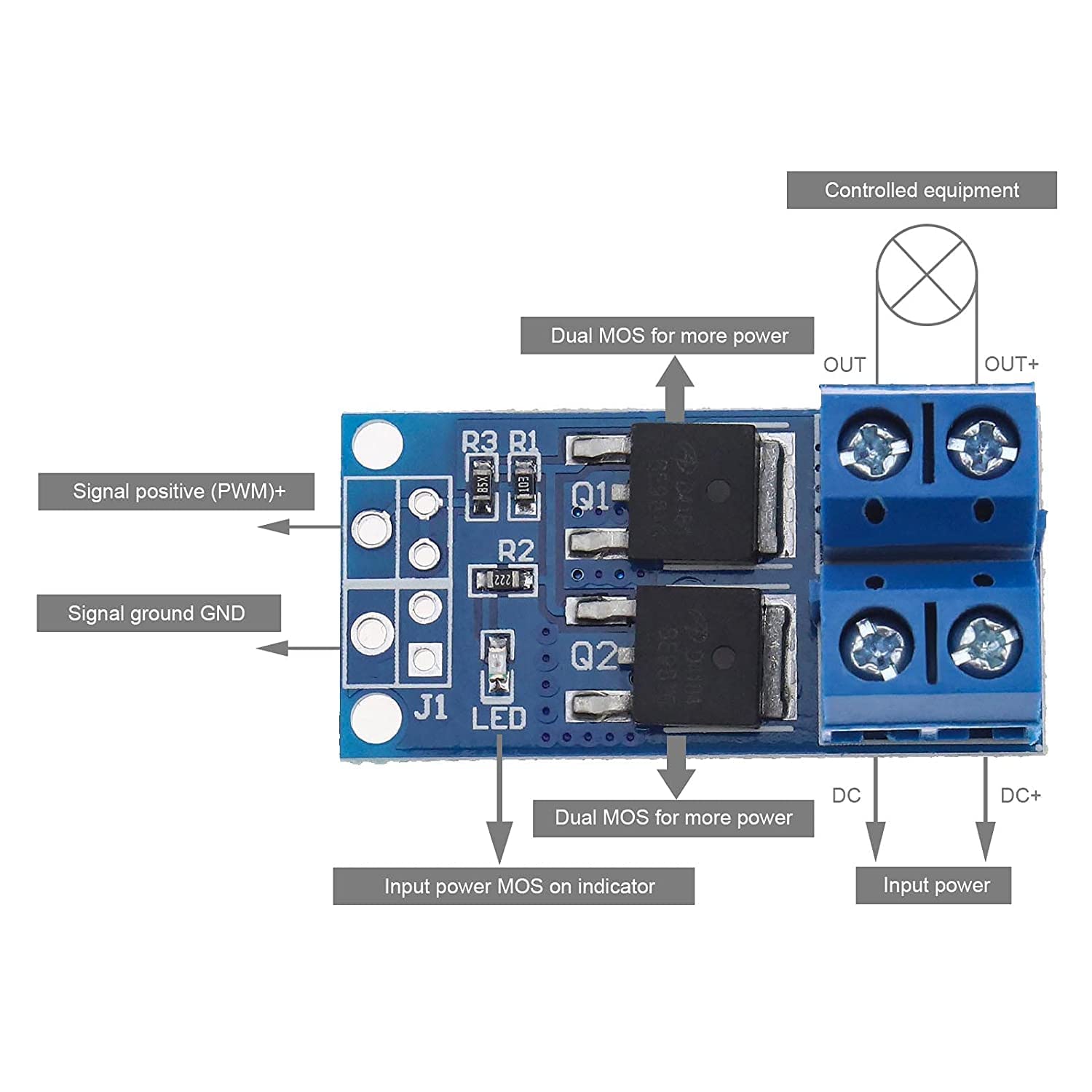

Description: 1. Total 20pcs with professional design. The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, lamp brightness, etc. 2. We can use dual MOS parallel active output, lower internal resistance, larger current and strong power. 3. Operating Voltage: DC DC 5V--36V; continuous current 15A at normal temperature; power: 400W; The maximum current can reach 30A under auxiliary cooling conditions. 4. Supports the PWM signal, the signal frequency is 0--20KHZ, which can control motor speed, lamp brightness and so on. 5. Wide voltage, support PWM;Easily control high-power devices;Service life: unlimited switch; working temperature: -40-85 ¡ã C; size: 1.34x0.7x0.5 inch/3.4 x 1.7 x1.2cm(L*W*H) Package: 20x MOS FET Trigger Switch
