Will this accept the typical (rectangular) 14/2 wire ? (or must be round only ?) thanks.

This is a product for low voltage use ONLY. It will MECHANICALLY accept such a wire -- I did so with a 14-2 wire rated for direct burial. BUT, the resulting seal was not really weather tight [I augmented the seal with RTV [silicone rubber from a tube] both outside and inside the box for a LOW VOLTAGE solar solar light]. This product would not meet code for 112 volt AC use and I would STRONGLY advise against using it for such an application. I was using 14/2 because the solar panel was a long way from the light and I wanted a heavy conductor to minimize the voltage drop between the two. PLEASE talk to a licensed electrician for advice on 112 volt wiring, ESPECIALLY when outdoor wiring is involved, to avoid dangerous and even deadly mistakes. Be well.

Does it work with 6 AWG wire?

depends on how many conductors and the thickness of the insulation. Per the description, this box can handle 5-12mm. 6AWG wire (no insulation) is just over 4mm.

What is the diameter of the two threaded holes in the ends? I plan to use this in a dry location, so would discard the sealing fittings.

The unit is now buried in a snow bank outside so I can't answer directly, but it comes with removable yellow rubbery inserts of two different inside diameters for different sized cables. I was able to easily fit 12 gauge, two conductor [plus bare ground wire], UF direct burial cable into the unit, through one of the yellow inserts and then tighten down the black end cap for a "weather tight" fit. Since you are installing in a dry location, you could toss the yellow inserts to allow maybe a 1/2 inch cable to enter the box if dust, insects and dirt were not an issue IF YOU SECURE THE CABLE MECHANICALLY OUTSIDE THE BOX so that there is no strain on the connections inside the box. The yellow inserts provide strain relief as well as weather proofing. [Also, because the UF cable has an oval cross-section, I covered the end with RVT silicon rubber to insure a weather tight sea in my application] CAUTION: I used the device for low voltage signal cables -- I doubt it would be code compliant for 120 volt a.c. line voltage, and personally would not recommend it for such use as a general principle. For line voltage work, use an appropriate junction box with code compliant strain relief methods. Hope this helps -- Be well.

ASIN	B07FDKH4G3
Best Sellers Rank	#288,755 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #582 in Electrical Boxes
Brand	ILSSLI
Capacity	227.5 Cubic Centimeters
Color	Black
Date First Available	July 9, 2018
Finish Type	Painted
Installation Type	Screw-In
Is Discontinued By Manufacturer	No
Item Weight	3.52 ounces
Item model number	JXH2JKJND
Manufacturer	FX
Material	Plastic
Product Dimensions	1.38"D x 1.97"W x 5.31"H
Specification Met	Junction Box Waterproof Outdoor
Style	Compact
UPC	192687053704

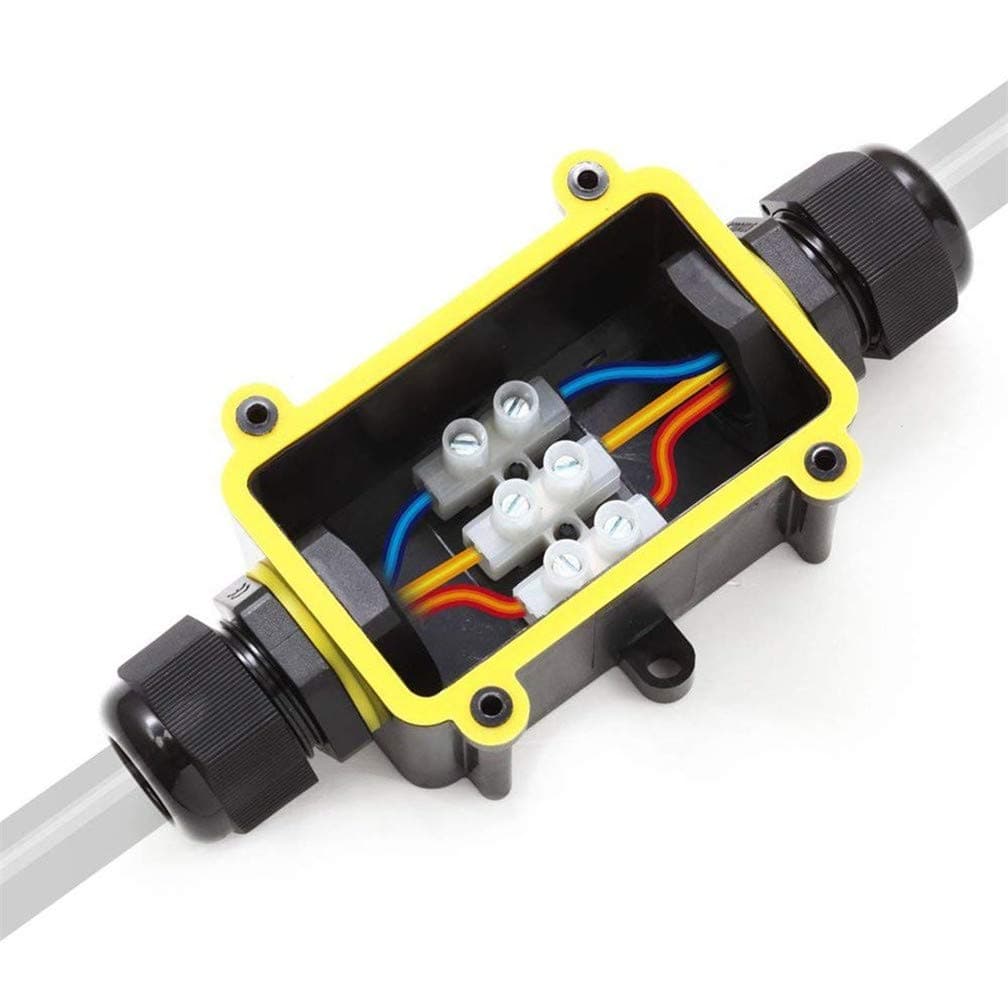

FX Junction Box Waterproof IP68 2 Way Plug Line M20 Coaxial Cable Connector Wire Range 5 to 12mm Outdoor External Electric Power Cord Boxes
