Question 1

Will these jigs work with a cabinet that needs slide a rear drawer slide hanger installed?  Did not see this application in the video.

Accepted Answer

No, don't buy these they are glorified framing squaren speed square or rafter Square's . Simply clamp bottom of Rafter Square's to face of cabinet 1/4 inch higher than bottom of drawer measurement. Screw it in your done. You can buy a rafter Square for a few bucks at harborfreight.com. Surprise they even have pocket hole jigs. Common mistake is that the Kreg Jiggs ARE THE only options for pocket holes & other items when in fact there has been similar if not identical devices for years and years at far cheaper rate.

Question 2

How do you use this for the bottom drawer in a box?

Accepted Answer

Hello Wilber,Mounting Drawer-Slide Cabinet Members*Place a ¼" 6mm-thick, 1½" 38mm-wide spacer board that is as long as the drawer slide between the bottom of the cabinet and each drawer slide.*For overlay drawer fronts, follow the drawer-slide manufacturer's instructions for the slide setback distance from the face of the stile (for face-frame cabinets) or the front edge of the cabinet side (for frameless cabinets). For inset drawer fronts, add the thickness of the drawer front.* Using the vertical mounting slots in the drawer-slide cabinet members as guides, drill pilot holes and screw the cabinet members in place.INSTALLING A DRAWER AT THE BOTTOM OF A CABINETUnder-mount Drawer Slides*Follow the drawer-slide manufacturer's instructions for installing the drawer membersThank You,Josh

Question 3

Do these work well without the kreg clamps shown in the pictures and video?

Accepted Answer

I don't like using the Kreg clamps with these jigs. Too hard adjusting them just right and then getting them in the right place. It's way easier to use a one-handed "squeeze" type bar clamp like the Irwin:

https://www.amazon.com/IRWINQUICK-GRIPOne-Handed-Mini-Clamp-Pack-1964745/dp/B001NP9S7M/ref=sr_1_7?ie=UTF8&qid=1504218775&sr=8-7&keywords=bar+clamps

I actually use clamps I got at Harbor Freight for $4 each.

Question 4

Can this jig work for drawers with slides mounted 2.25” from bottom of drawer?

Accepted Answer

Yes it can, the mfg wasn't thinking in 2 dimensions. Just flip the jig 180 in the horizontal plane, that is turn it upside down, you may need another clamp to hold the drawer slide or you can hold by hand, the important thing is that the slide is 90 dg to the front which it will be weather the jig is above or below the slide!

ASIN	B01L2T0IDQ
Best Sellers Rank	119,560 in DIY & Tools ( See Top 100 in DIY & Tools ) 223 in Jigs (DIY & Tools)
Brand	Kreg
Colour	Blue
Customer Reviews	4.6 4.6 out of 5 stars (5,036)
Drawer Type	Under Mount
Finish	Unfinished
Global Trade Identification Number	00647096806644, 00647096807337, 05024763174193
Included Components	1x jig
Item Dimensions L x W x Thickness	40.6L x 14.6W x 10.2Th centimetres
Item Type Name	Drawer Slide Jig
Item Weight	1.15 Pounds
Manufacturer	Kreg
Manufacturer Warranty Description	2 year manufacturer.
Material	Metal
Model Number	KHI-SLIDE
Mounting Type	Under Mount
Number of Items	1
Part Number	KHI-SLIDE
UPC	647096806644 647096807337 735090165024
Unit Count	1.0 count

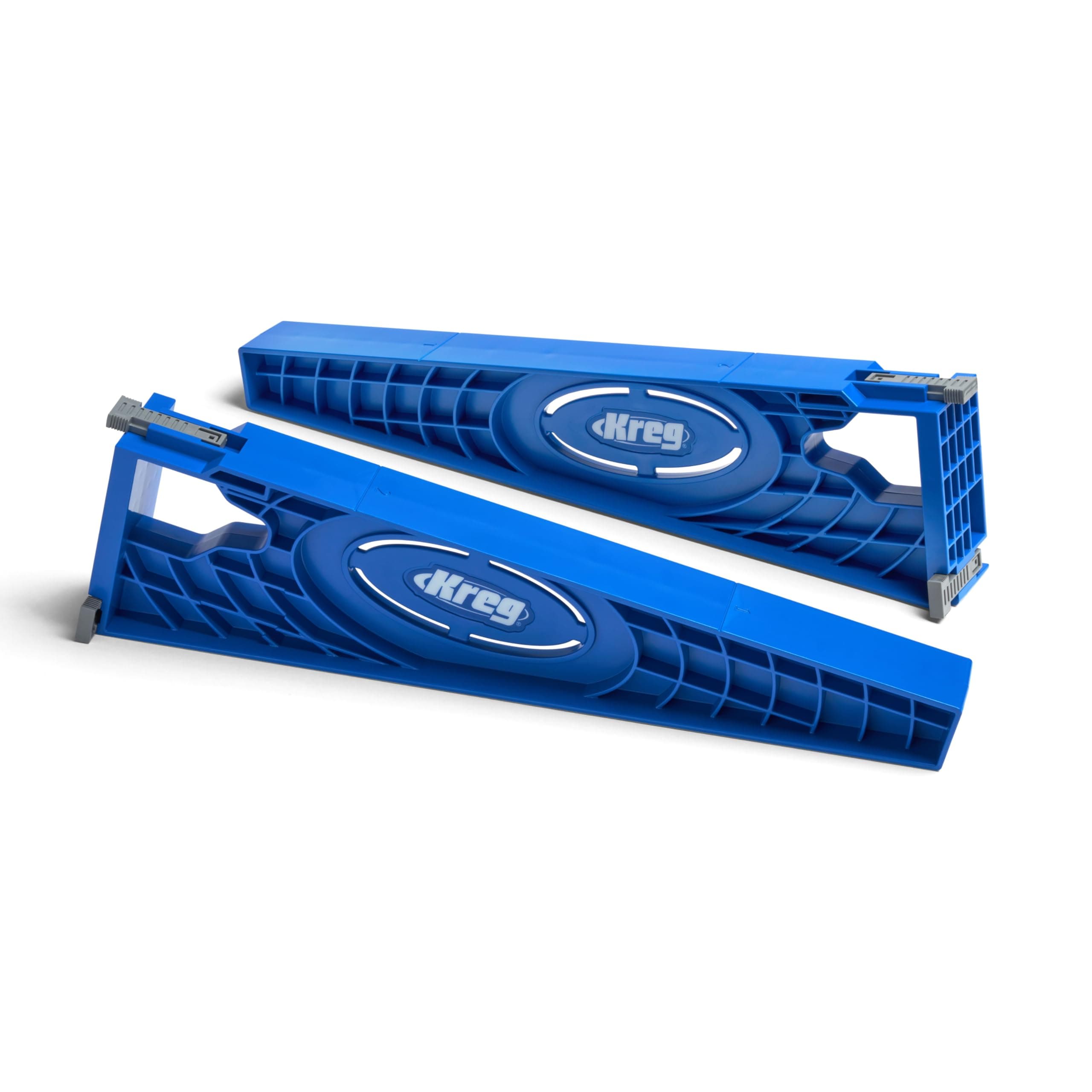

KREG® Drawer Slide Jig
