🔗 Connect with Confidence: Power, Protection, and Precision in One Module

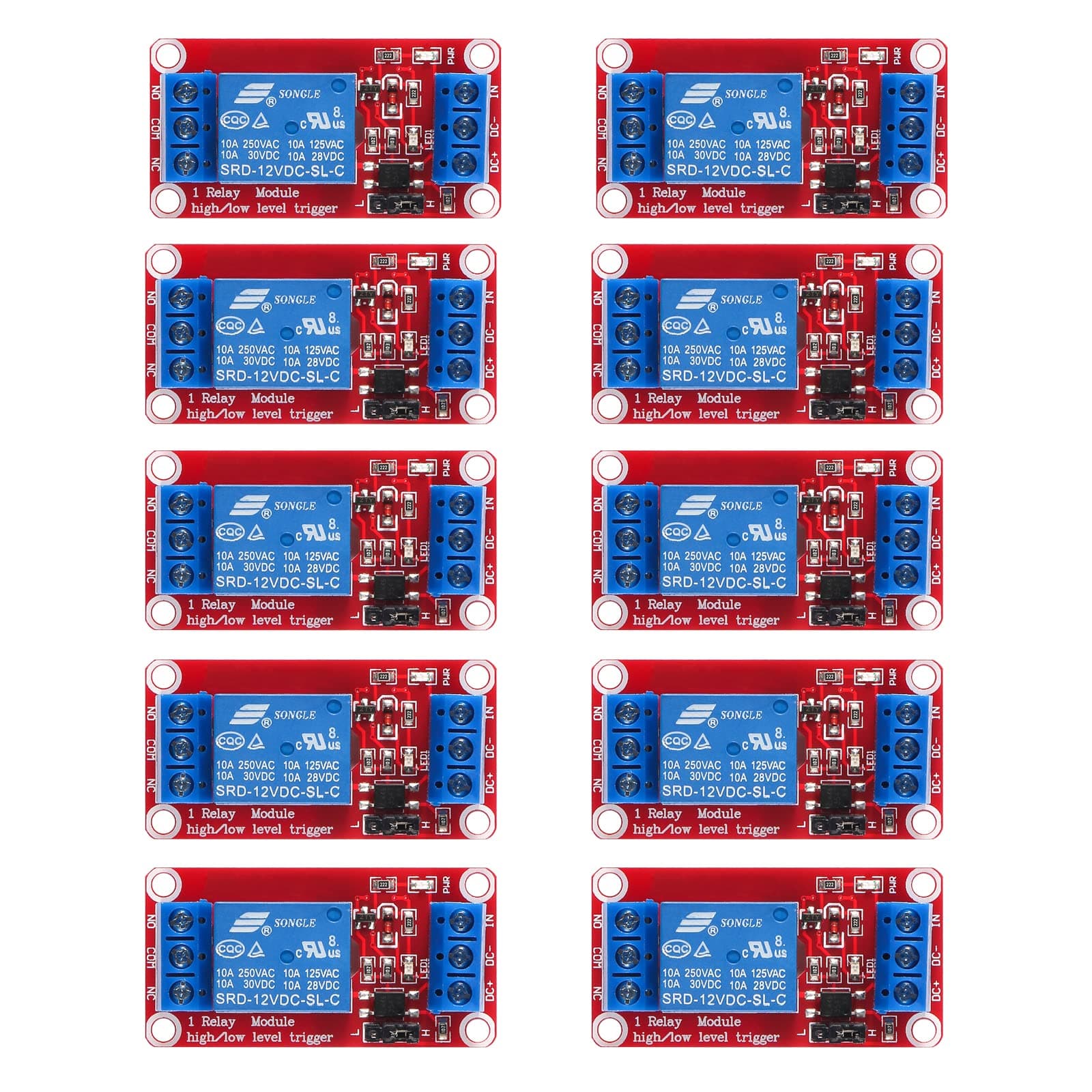

The AEDIKO 10pcs 12V Relay Module features a single-channel relay with optocoupler isolation, supporting high or low-level triggers. Rated for up to 10A at 250V AC or 30V DC, it offers fault-tolerant design and screw terminal connections for easy wiring. Ideal for ARM, PIC, AVR, Raspberry Pi, CNC, and other microcontroller projects, this module combines robust performance with reliable protection to elevate your automation and control systems.
| ASIN | B0972R8QZS |
| Best Sellers Rank | #2,779 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #1 in Solid State Relays |
| Brand Name | AEDIKO |
| Coil Voltage | 12 Volts |
| Connector Type | Screw |
| Contact Current Rating | 10 Amps |
| Contact Material | Silver Alloy |
| Contact Type | No, Nc |
| Current Rating | 10 Amps |
| Customer Reviews | 4.6 4.6 out of 5 stars (85) |
| Manufacturer | AEDIKO |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 250 Volts |
| Mounting Type | PCB Mount |
| Operation Mode | Automatic |
| Part Number | 14933 |
| UPC | 701715480902 |
| Wattage | 30 watts |
R**N
Simple and work.
Good quality product, everything as described in add.
B**.
Works well for most projects.
Good price ands easy to use. These work well with the MedeaWiz Hydra controller for the Sprite video player.
S**G
12v relays work with raspi zero 2w
I verified the 12v relays work well with no customization necessary for the raspberry pi zero 2w (2021 model). I initially bought the 4 pack and then bought more (10 pack). These relays are nice and compact for standoff stacking in project boxes. I don't write reviews normally but I tried several different relays before settling on this one.
B**Z
Este producto da la felicidad aúna simple conversión de manera segura y eficiente.
S**L
Excelente
Excelente
H**D
as advertised
look reasonable
E**Y
Dumb design needs much better documentation!
This product works but it has one kind of stupid design flaw. More complete documentation could resolve the issue but as documented, the opto-isolator is useless! In order to actually isolate the relay power, you have to use the center pin of the 3-pin jumper. If the IN input is active low, the jumper pin is connected to +5V of the isolated device. If you want active high input, connect the input to the center pin and connect IN to ground of the isolated device. If you want more information, I would suggest contacting the seller since they provided such useless documentation. By the way, there are many copies of this circuit on Amazon and they are all equally dumb.
D**E
Served my purposes very well. Thank you!
Served my purpose very well.
