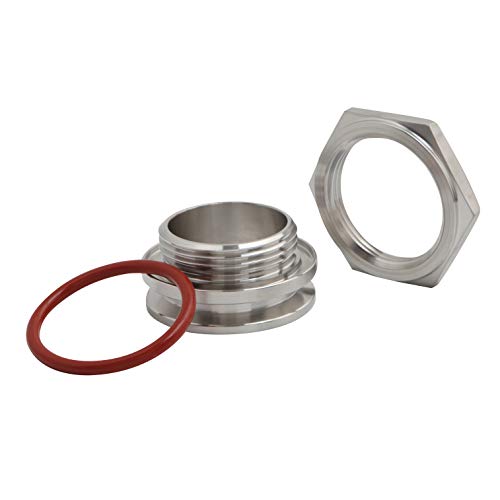

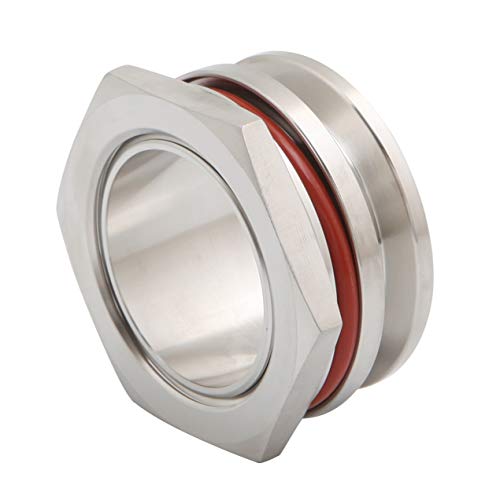

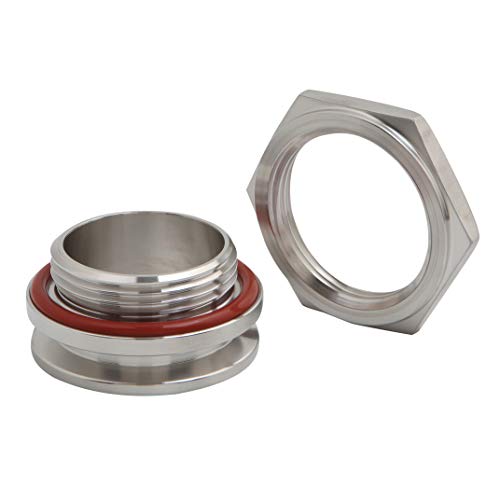

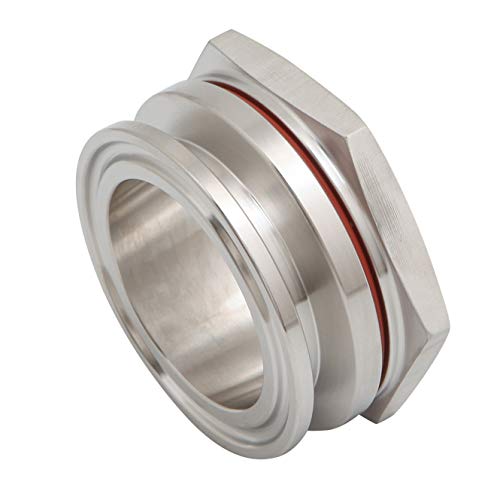

The 1.5 TC bulkhead fittings are designed without welding. The TC port can be added to any vessel without welding. There is no flat surface for the wrench on the front of the flange. The easiest way to fix the flange is to clamp any other with washers and clamps TC parts. After tightening, you can insert a long rod or screwdriver into the hole of the wing nut Review: I wanted to use sanitary triple-clamp connections where possible in my recent conversion of my home brewing gear from gas to electric. These are very well made, and have the perfect thickness and density gaskets to properly seal on the curved face of a brew kettle without leaking. For reference, I'm using 16 gallon, 16" diameter SS brew pots. I have no trouble fitting a 3500w Dernord heating element through the port. Just ordered another one for my HLT! Review: Installed easily on my brew kettle. Drilled a 42mm hole clamped a 90 degree bend on the outside and tightened with a large crescent wrench. Leak free so far. the captured o ring design seems to work best for weldless fittings. Would buy again.
| ASIN | B07VTTWMDV |
| Brand | semfeil brew |
| Connector Type | Adapter |
| Exterior Finish | Stainless Steel |
| Item Dimensions LxWxH | 25 x 25 x 25 Millimeters |
| Item Weight | 160 g |
| Item dimensions L x W x H | 25 x 25 x 25 Millimeters |
| Item model number | Bulkhead Compression Fitting TC |
| Manufacturer | semfeil brew |
| Number of Pieces | 1 |
| Product Dimensions | 2.54 x 2.54 x 2.54 cm; 160 g |

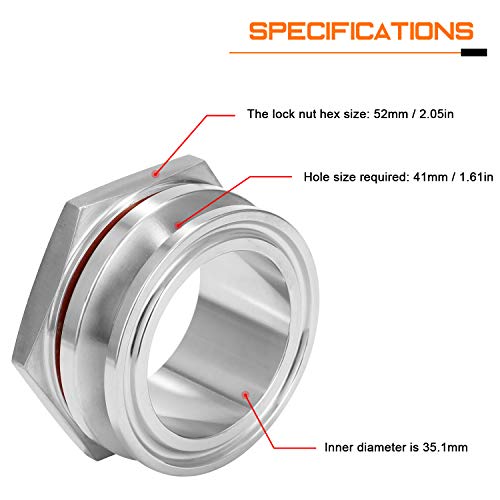

| Thread Size | 32mm or 41mm |
| Thread Type | TC |
| UPC | 016071108200 |
J**E
I wanted to use sanitary triple-clamp connections where possible in my recent conversion of my home brewing gear from gas to electric. These are very well made, and have the perfect thickness and density gaskets to properly seal on the curved face of a brew kettle without leaking. For reference, I'm using 16 gallon, 16" diameter SS brew pots. I have no trouble fitting a 3500w Dernord heating element through the port. Just ordered another one for my HLT!
T**B
Installed easily on my brew kettle. Drilled a 42mm hole clamped a 90 degree bend on the outside and tightened with a large crescent wrench. Leak free so far. the captured o ring design seems to work best for weldless fittings. Would buy again.
D**S
Looks to be very well make and cut. Easy to install. Is work great to my electric brew setup!
E**Z
Bought this to add to a pot I am going to add an 5500W element. Solid heavy piece. recommend it
S**S
Made my connections into steel pot easy and leak free.
