⚡ Power Your Projects with Pro-Level Precision and Expandability!

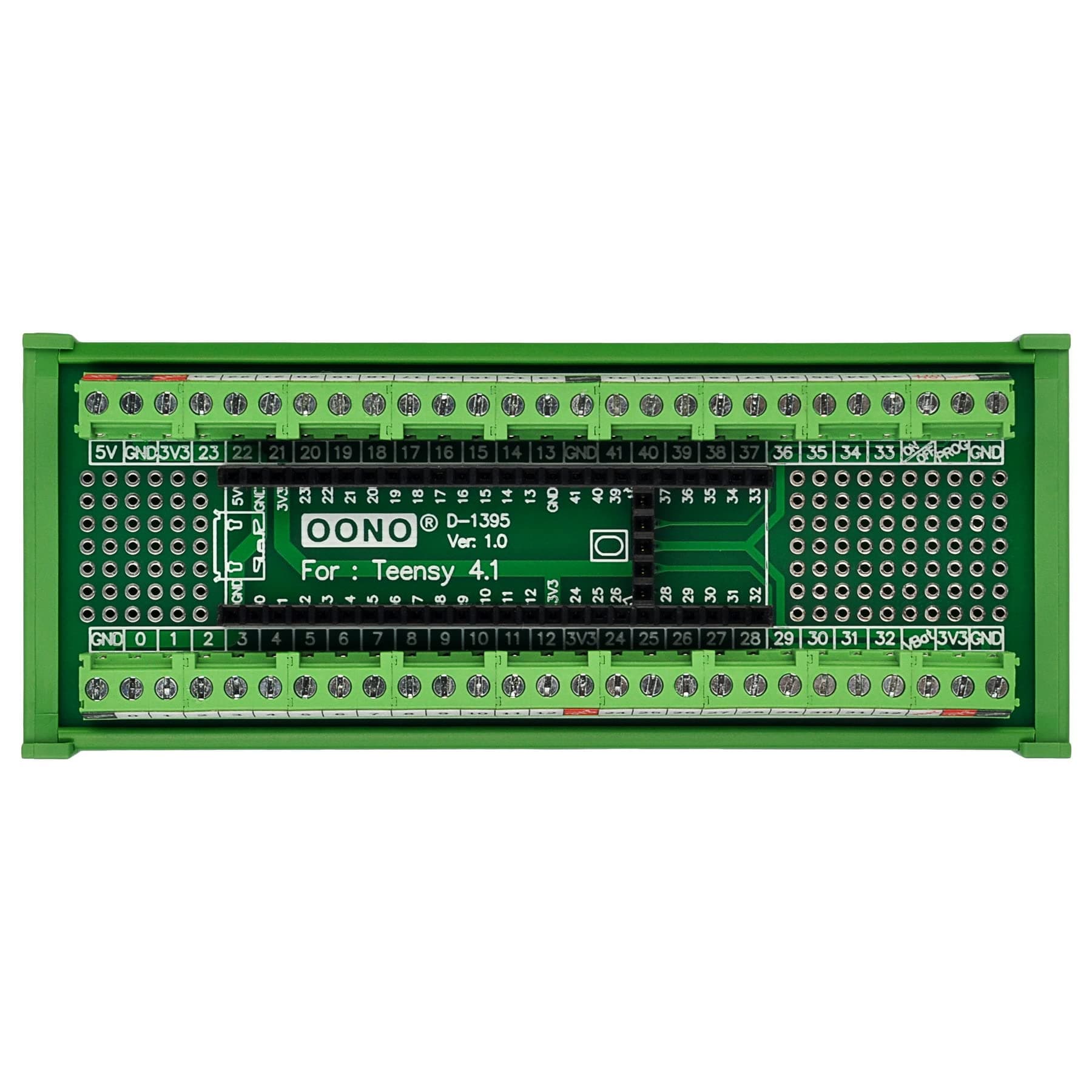

The Terminal Block Breakout Board Module for Teensy 4.1 DIN Rail Mount version offers 112 solder pads and terminal contacts rated for 13 amps, built on a durable FR-4 fiberglass PCB with fireproof Taiwan DINKLE nylon carrier. Designed for seamless DIN rail mounting and industrial-grade reliability, it supports 26-16 AWG wires with secure M2 screws, making it the ultimate extension for your Teensy 4.1 in automation and control applications.
| ASIN | B08R7RJY65 |
| Best Sellers Rank | #173,505 in Industrial & Scientific ( See Top 100 in Industrial & Scientific ) #12 in IO Modules |
| Brand Name | OONO |
| Color | Green |
| Connector Type | Screw |
| Current Rating | 13 Amps |
| Customer Reviews | 4.3 4.3 out of 5 stars (16) |
| Gauge | 16.0 |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Model | D-1389 to D-1395 Series |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 112 |
| Number Of Poles | 112 |
| Number of Positions | 112 |
| Part Number | D-1389 to D-1395 Series |
| Pitch | 3.81 Millimeters |
| Upper Temperature Rating | 105 Degrees Celsius |
R**N
Awesome board
Cleanly mounts your board, and makes wiring up a breeze.
J**L
worked well. holds the wires well. robust.
robotics
H**O
Works well especially with a processor like the 4.1
Does the job
R**D
Headers soldered on the wrong way, killed my Teensy
I love the format, but I have to give this 1 star because mine has the headers labeled wrong. Basically, each side is swapped. It's taken me a while to figure out what was going on, because things weren't working correctly and my Teensy 4.1 (which you know is NOT cheap) died. Turns out that all of the pin labels were wrong and two sets of ground and VCC (one 3.3V and one 5V) were swapped with pins labeled ground. What a nightmare. I'm lucky it didn't kill more parts on the robot that I'm building, but I'm still out the price of this board as well as a Teensy 4.1. Look closely at the video that I shared and you can see the problem.
