My picture is clear in the day but with night vision it’s distorted. I have some pics.

I need to see the pics 1 day and 1 night how old is the camera?

What is the lux on this camera.?

Dear Friend, Good day! Thank you very much for your questions,it is our great pleasure to cooperate with you. The lux of this camera is about 10 Lux CDS on, IR led will turn on. My best regards! Amanda Shenzhen D&C Security Technology Co.,Ltd

Hello, I had picture and not getting instructions of how to use the 4 way box, I used it to set the camera and then the video went blank. Please help.

Push the cable in the middle of the button, adjust to the correct output signal, Push Left & Hold for about 10 seconds or more, it will switch to the AHD signal, Push Right & Hold for about 10 seconds or more, it will switch to the TVI signal, Push Down & Hold for about 10 seconds or more, it will switch to the CVI signal, Push Up & Hold for about 10 seconds or more, it will switch to the Analog signal, When you push,please hold it for about 10 seconds,do not push only. As we do not know which signal is ok for your DVR,pls try all the 4 side for left,right,down and up.

any video's or pics on quality for this?

Dear Friend, Good day! Thank you very much for your message, it is our great pleasure to cooperate with you. Dear, pls check the main photos, it has the camera image picture. And here is my email address: amandar@dcsecurity.com.cn, pls send me an email, I will reply you with some pictures too. Any other things I can do for you, pls feel free to let me know. My best regards! Amanda Shenzhen D&C Security Technology Co.,Ltd

Desertcart Logo

交付 Malaysia

获得最佳体验获取应用程序

下载应用程序

我们从

阿联酋
英国
印度
美国
日本
KOREA

客户服务

关于我们

客户支持

描述

👁️‍🗨️ See it all, miss nothing — your 180° security game-changer!

DAY NIGHT VIGILANCE - Infrared night vision ensures your property stays protected around the clock, rain or shine.
PANORAMIC 180 WIDE ANGLE - Cover entire rooms effortlessly with a fisheye lens that replaces up to 3 cameras.
ROBUST OUTDOOR READY DESIGN - IP54-rated metal dome housing withstands weather and tampering for reliable surveillance.
CRYSTAL CLEAR 5 MP RESOLUTION - Experience ultra-sharp video with a 5MP CMOS sensor that captures every detail.
SUPER HYBRID 4 IN 1 COMPATIBILITY - Seamlessly switch between TVI, AHD, CVI, and Analog modes to fit your existing DVR setup.

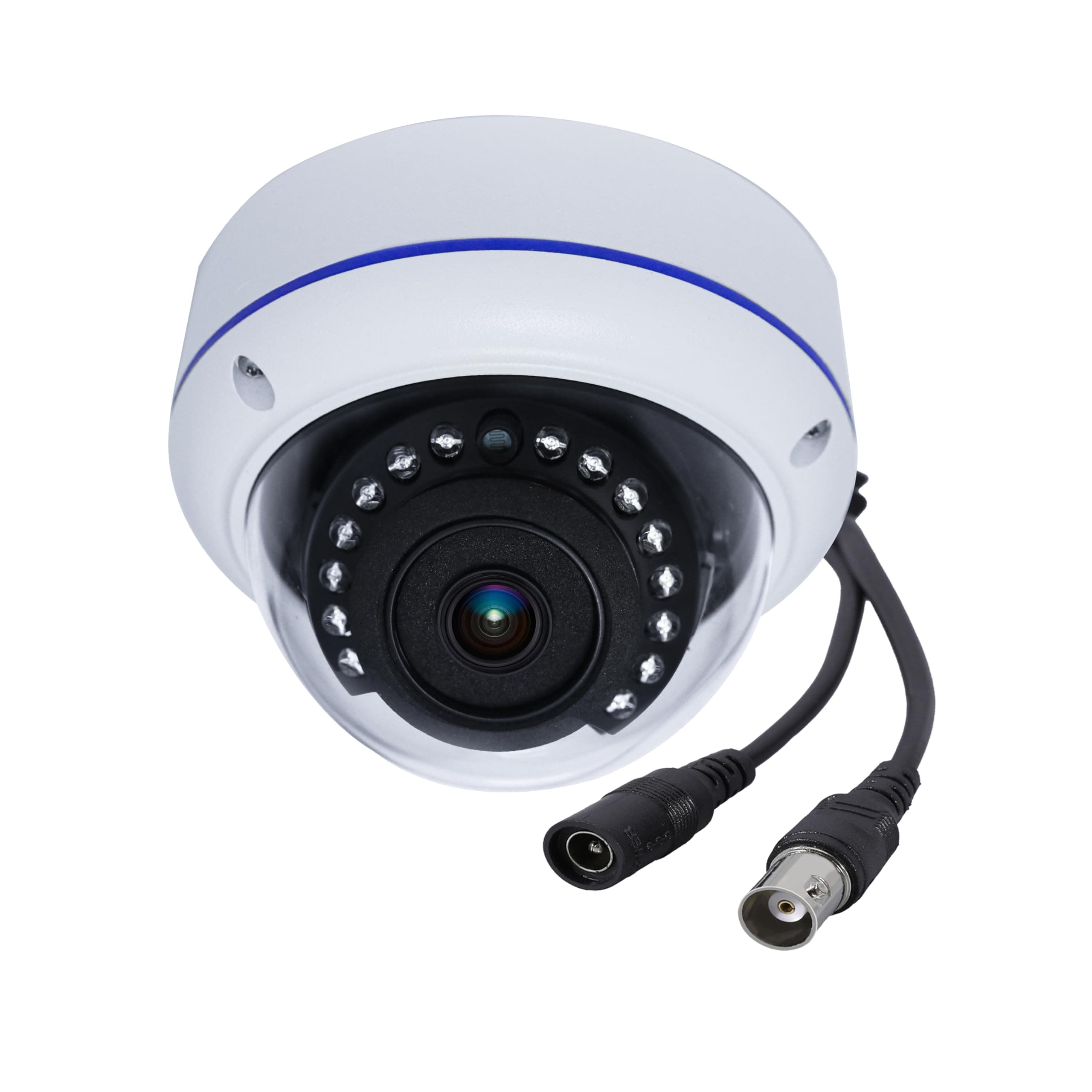

This 5MP 4-in-1 Super Hybrid Dome Camera delivers ultra-wide 180° coverage with a high-resolution 5MP CMOS sensor and IR night vision. Compatible with TVI, AHD, CVI, and Analog DVRs, it offers versatile installation for indoor/outdoor use with a durable IP54 metal casing. Ideal for professionals seeking comprehensive, cable-saving surveillance without compromise.

规格

Night Vision	景相机
Video Capture Format	MPEG-4
Number of Channels	2
Connectivity Protocol	HomePlug
Wireless Technology	NO
Connectivity Technology	Wired
Unit Count	1.0 Count
Item Dimensions	4.13 x 3.35 x 3.35 inches
Field Of View	180 Degrees
Zoom	Digital Zoom
Photo Sensor Technology	cmos sensor
Viewing Angle	180 Degrees
Wattage	3 watts
Are Batteries Required	No
Voltage	12 Volts
Power Source	DC 12V Power Adaptor(not included)
Effective Video Resolution	1080 Pixels
Frame Rate	20 frames_per_second
Video Capture Resolution	1920p
Material Type	Metal
Alert Type	Motion Only
Waterproof Rating	IP54
Photo Sensor Resolution	4 MP
Control Method	Remote
Room Type	Office
Light Source Type	Infrared
Effective Still Resolution	5 MP
Color	5MP Analog 180 Degree
Form Factor	Dome
Installation Method	Ceiling
Additional Features	5 Megapixel,4 Megapixel,180 Degree Wide Angle View,Metal Case
Indoor Outdoor Usage	Outdoor
Compatible Devices	Digital Video Recorder
Controller Type	Iris
Mounting Type	Ceiling Mount
